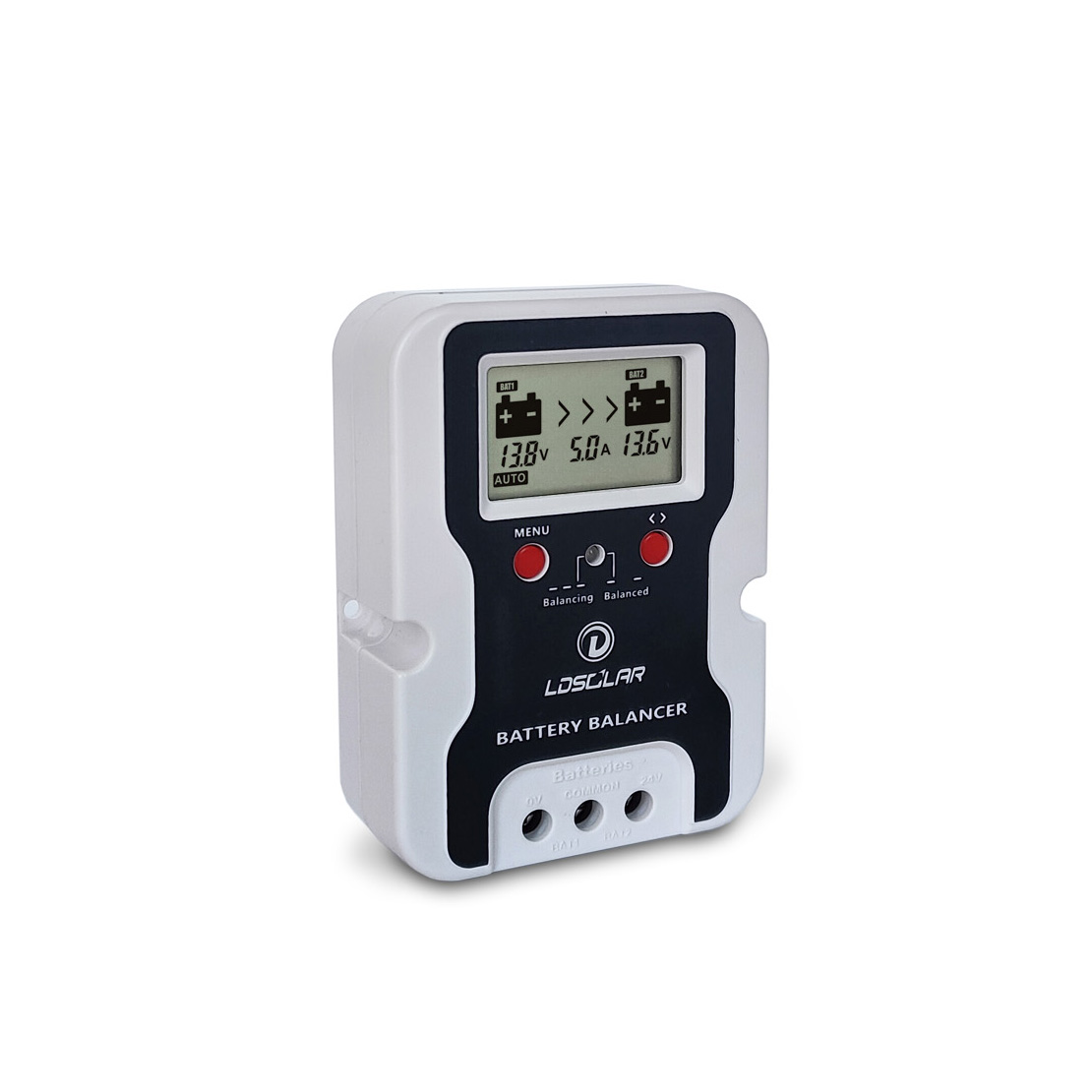

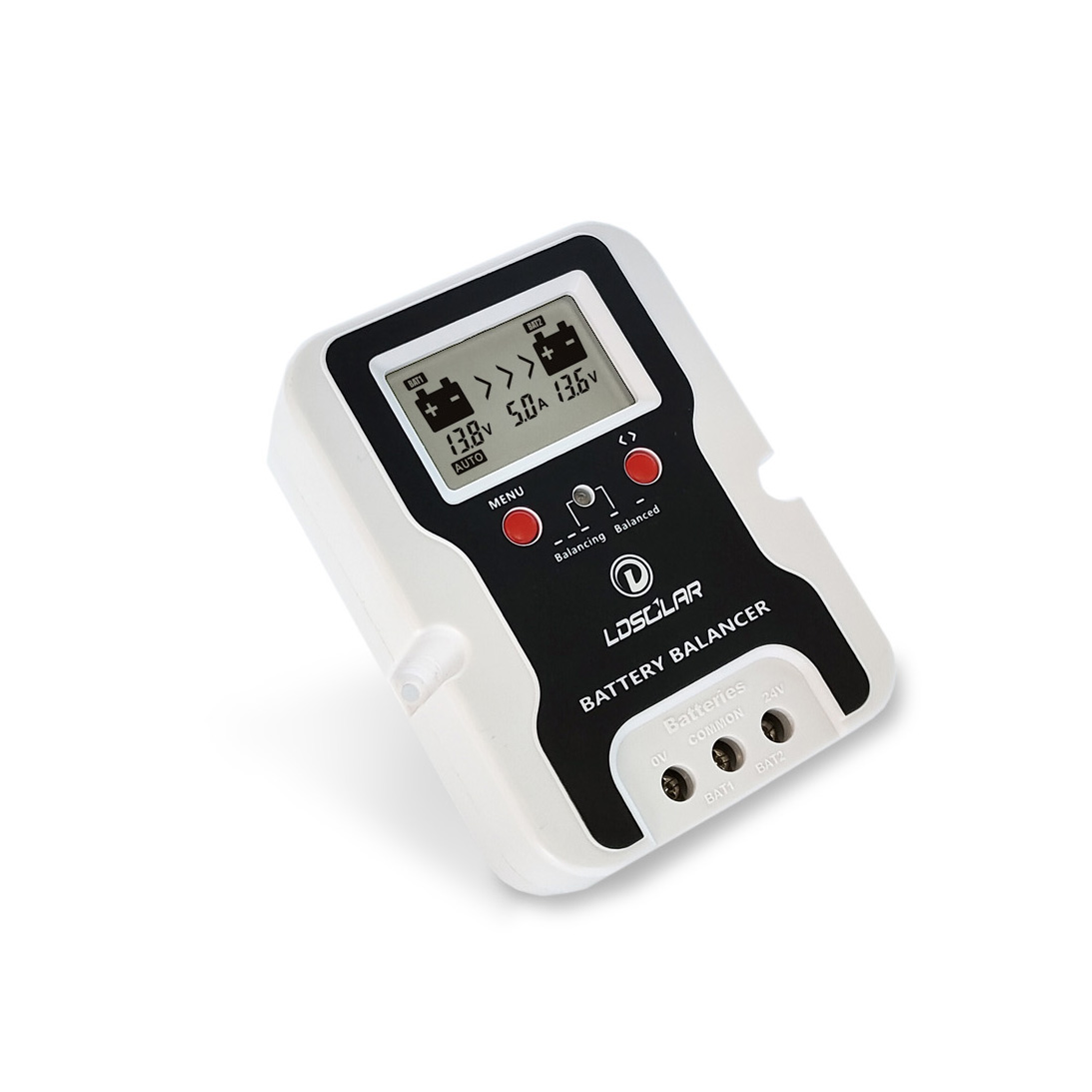

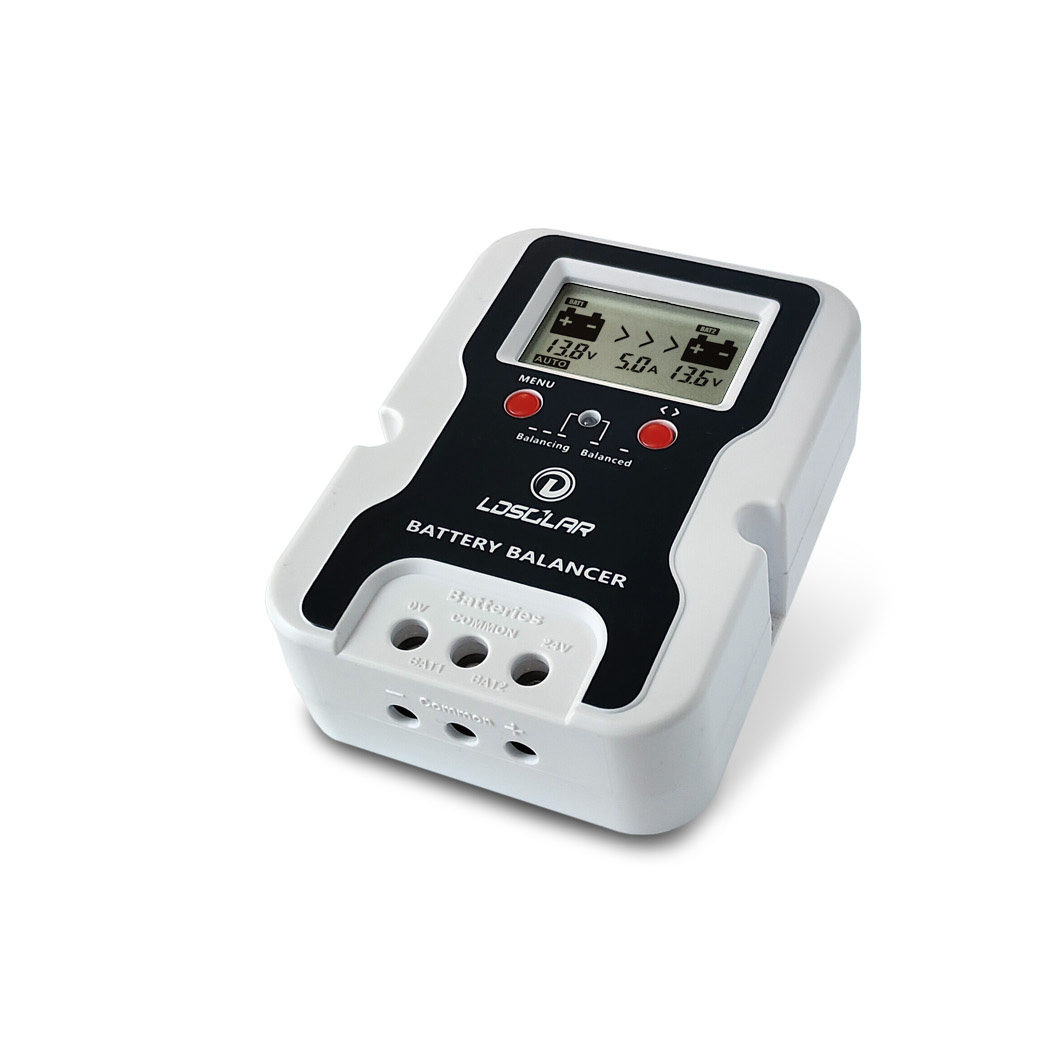

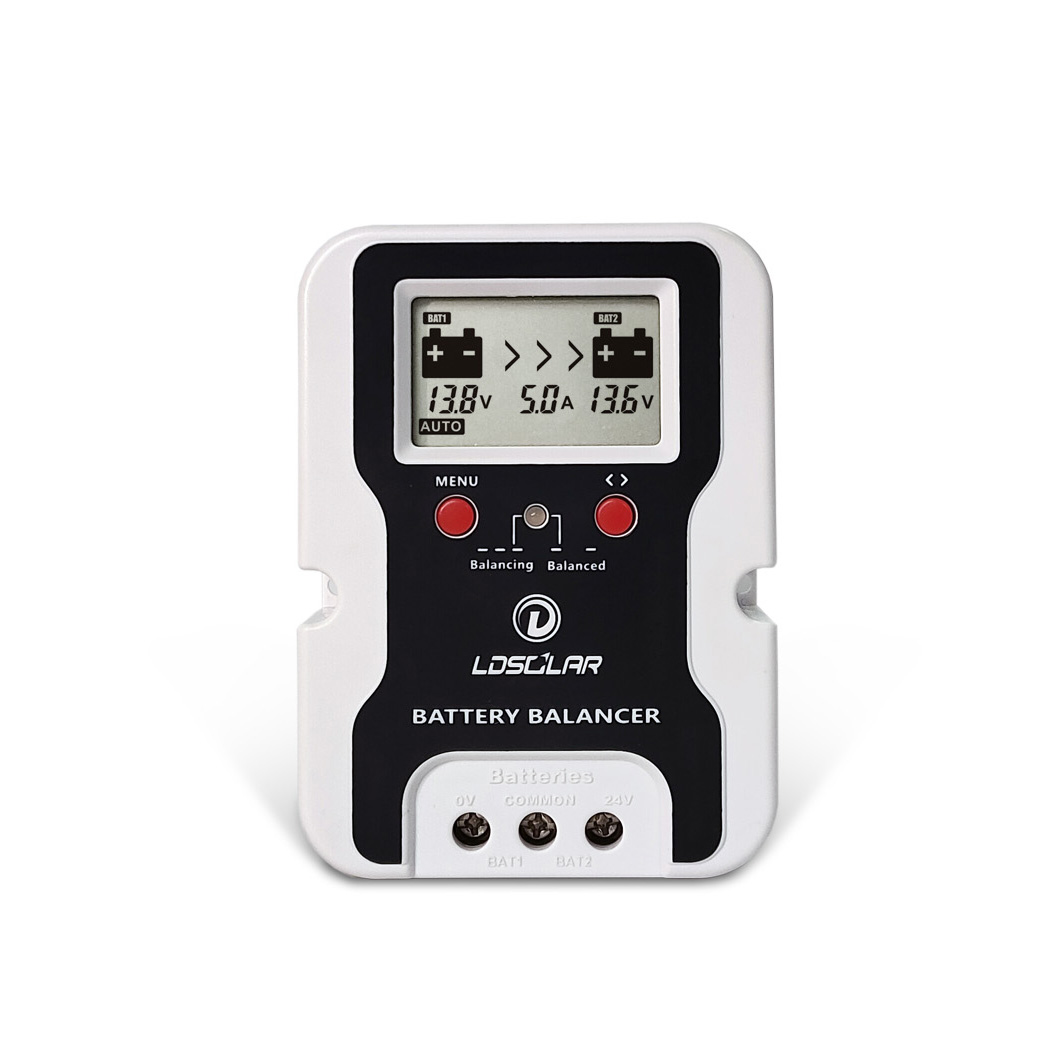

GD Series（5A 24V）Battery Balancer
The GD series intelligent active battery balancer automatically detects the battery voltage during the charging and dischargingprocess, adopts a bidirectional energy transfer balance, and transfers the energy ofthe high voltage battery to the low voltagebattery through energy transfer, thereby achieving equal voltage between the two batteries.
Product Information
 |
|
|
|
|
|
|
|
|
|
|
Product Details
|
01 |
02 | 03 | ||
| LED Display | Easy wiring | LCD display | ||
| LDSOLAR's GD series of battery balancer are designed with LED indicator. Display working status more intuitively | The connection of LDSOLAR's battery balancer GD4805 is very easy. A 48V battery pack only requires one battery balancer, which can be connected by connecting 5 wires in sequence. | LDSOLAR's full range of battery balancer GD are designed with LCD displays. It can display the voltage of a single battery, there are up to 4 equalization modes for you to choose from. |
Product Highlights
|
|
|
|
|
| Easy wiring | LCD Display | Multiple working modes | Energy Transfer Balancing |
 |
 |
 |
 |
| 5A Balanced Current | 24V/48V System | Can be used in parallel | Protections |
Product Parameters
| Mode | GD2405 | GD4805 |
|---|---|---|
| Input Voltage range | 8-36V | 8-72V |
| Starting Balancing Voltage | 27.0V or 23.0V(STP 01) | |
| Stop Balancing Voltage | 20.0V | |
| Starting Balancing voltage drop | 100mV | |
| Balance accuracy | 40mV | |
| Maximum balancing current | 5A | |
| Self-consumption | ≤6mA | |
| Working temperature range | -20℃-+50℃ | |
| Protection grade | IP32 | |
| Size | 99mm×75mm×32mm | 99mm×150mm×32mm |
| Net weight | 120g | 310g |
Product Connection
*Please be sure to follow the wiring instructions as incorrect wiring may damage the device.
